VACUUM BOXES
Used for leak testing in building of ships, barges, tanks, or any seal weld application.
Designed for use in flat areas. Double-sided gasket design ensures a good seal during vacuum test.
Vacuum pump or compressed air source can be used.
Custom Sizes are Available - Please call!
Flat Box
Flexible Box
Corner Box
Available in 18” Flat Vacuum Box
PART: VB18
Weight: 5.0 lbs
Available in 30” Flat Vacuum Box
PART: VB30
Weight: 7.0 lbs
Corner Box
Flexible Box
Corner Box
Available in 18” Corner Vacuum Box
PART: VB18C
Weight: 5.0 lbs
Available in 30” Corner Vacuum Box
PART: VB30C
Weight: 7.0 lbs
Flexible Box
Flexible Box
Boat Tail Flexible Box
3" wide X 30" long Flexible Vacuum Box
PART: VB30FX
Weight: 7.5 lbs
Boat Tail Flexible Box
3-Way Inside Corner Box
Boat Tail Flexible Box
Available in 4" wide X 18" long (6" long boat tail ends and 6" long center section)
PART: VB184BT
Weight: 3.5 lbs
Available in 6" wide X 24" long (6" long boat tail ends and 12" long center section)
PART: VB24BT
Weight: 4.0 lbs
3-Way Inside Corner Box
3-Way Inside Corner Box
3-Way Inside Corner Box
PART: VB3WIC
Weight: 3.0 lbs
3-way outside corner also available.

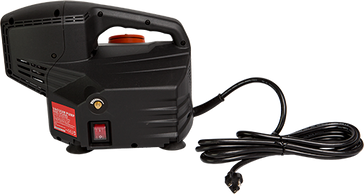

Vacuum Pump
3-Way Inside Corner Box
3-Way Inside Corner Box
Vacuum Pump for use in conjunction with our various vacuum boxes to vacuum test weld seams.
Features a regulator, quick fitting coupling, pressure gauge, warning buzzer, water filter with cartridge, auxiliary power plug, and 98" (2.5M) air hose.
- Max. Vacuum: -13 psi (-.9 bar / 26.5 in mercury)
- Airflow: 1.07 CFM (30.5 L/Min)
- Power Input: 110V / 200W
- Protection: IPX4
PART: VB-PUMP
Weight: 15 lbs
