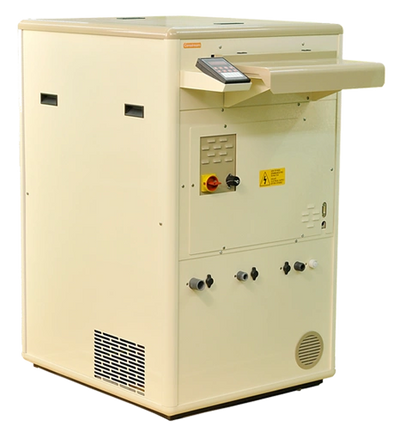

INDUSTREX M43iC PROCESSOR


Designed for the needs of high-volume Non-Destructive Testing customer, the INDUSTREX M43IC provides multiple processing cycles and dry-to-dry processing in as little as two minutes.

The INDUSTREX M43IC processor has a robust feature set that includes:

  • Up to nine programmable-controlled processing channels
    for maintaining preferred settings such as processing speed, developer temperature, fixer temperature, dryer temperature and replenishment rate
  • High processing capacity of up to 58 sheets/hour (14" x 17") in the recommended processing cycle for improved productivity
  • An intermediate fix rinse bath rack system that enhance process uniformity to both sides of the film
  • Feed-tray cover that allows for room light operation
  • Filtered developer solutions that reduce film artifacts
  • Integrated chiller unit that maintains developer temperature uniformity in hot environments
  • Two 50-liter replenishment storage tanks
  • Low level monitoring of all tank solutions
  • Automatic tank solution “Top-Up“ control that maintains correct solution levels upon processor start up
  • Work-in-progress monitoring
  • Integrated connectors to an external exhaust air system

Interface Display

The units’ intuitive keypad interface simplifies operation, and allows new users to become experts in a hurry. Touch a few buttons, and you can preprogram up to nine different settings to automatically accommodate your most frequent applications. Install these processors for free-standing operation in darkroom or for convenient through-the-wall feeding—load exposed film in darkroom, collect processed films in normal room light.

INDUSTREX M37 PLUS PROCESSOR


The tabletop INDUSTREX M37 Plus is ideal for automatic processing in mid-volume facilities. While compact, it offers the output you need and the excellent image quality and reliability you demand.

The INDUSTREX M37 Plus processor feature set includes:

  • Ease of operation with nine programmable-controlled processing channels
  • Economical medium-range processor with capacity of 33 sheets/hour (14" x 17") in the recommended processing cycle
  • Process films up to 17" wide
  • Compact design for smaller labs or environments
  • Comes with a table stand as standard
  • Filtered developer solution that reduce film artifacts
  • Intermediate rinse rack bath system
  • Can be used in stand-alone darkroom or through-the-wall installations
  • Automatic film-in detection utilizing a pulsed infra-red sensor bar
  • Automatic chemicals replenishment system for developer and fixer
  • Automatic heating for developer and fixer
  • Automatic anti-oxidation and anti-crystallization cycles
  • Separate drainage for developer, fixer and wash chemicals

Standard Accessories Include:

  • Two 30-liter replenisher storage tanks
  • Light tight feed-tray cover
  • Open stand for processor
  • Re-locatable controller unit for operator convenience
  • Spare part kit included
